THE ULTRA STRATOS

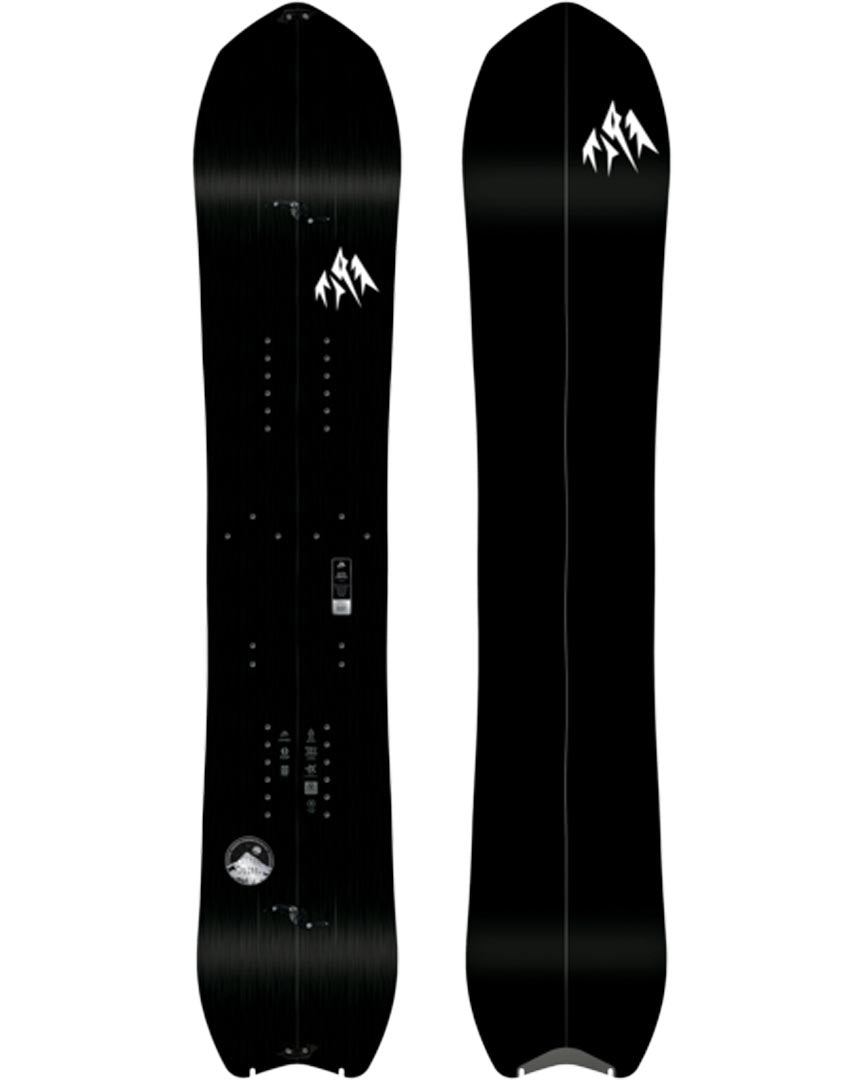

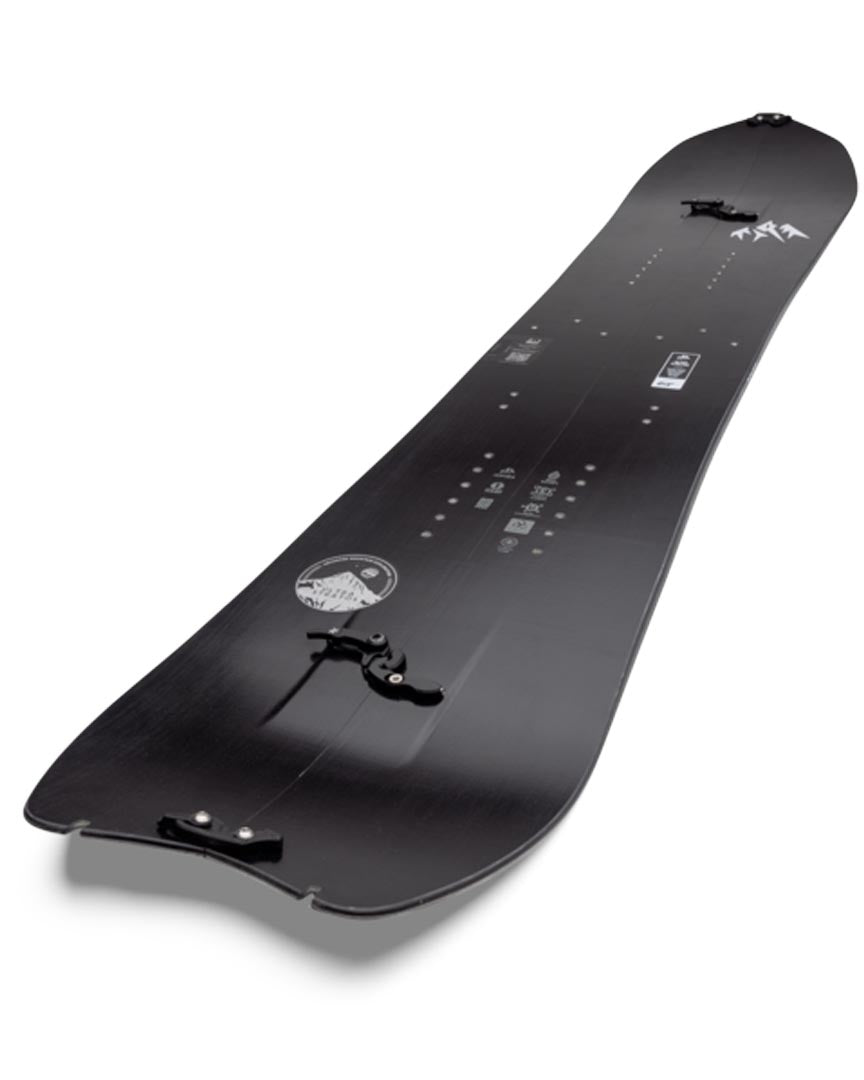

This is the Ultra Stratos Splitboard by Jones.

The ultralight, all-terrain splitboard

Ideal for all-conditions touring and technical backcountry descents.

The new Ultra Stratos Split is a dynamic and versatile ultralight splitboard built for extending your range and pushing your riding potential in all-conditions.

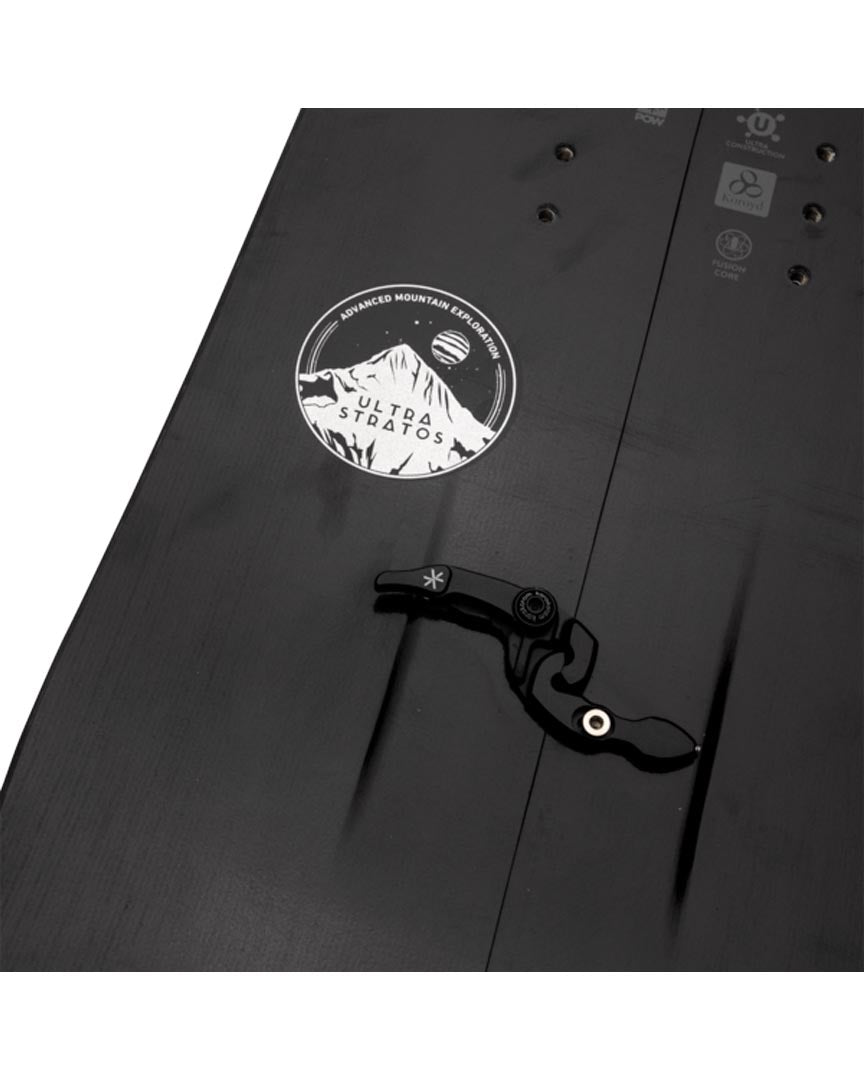

Built with the body of a directional freeride board and the spirit of a freestyle board, the Ultra Stratos has an energetic board feel thanks to a narrow sidecut and a camber heavy directional rocker profile. For added float and quick edge-to-edge response, the Ultra Stratos features 10 mm of taper and a 3D Contour Base 3.0. The Ultra Stratos is built with our ultralight Fusion Carbon construction including a wood core made with two sections of Koroyd that absorb chatter at a fraction of the weight of wood. For added edge grip and unmatched torsional board lock, the Ultra Stratos Split features Inner/Outer Traction Tech 3.0, the Boltless Bridge, Karakoram Tip Lock Tip Clips and Karakoram 3C Clips that clamp together with a three point tension system. The Ultra Stratos Split is designed for expert splitboarders who tour in all snow conditions and whose eyes are drawn to creative lines full of terrain features.

Ultra Stratos Skins Size Chart:

156: Skin group C

159: Skin group D

161W: Skin group G

Ultra Stratos Splitboard specifications

Board Size (cm)	156	159	161W
Board Weight	2,5kg / 5,5lbs	2,7kg / 5,94lbs	2,6kg / 5,72lbs
Surface Area (dm2)	41,02	42,13	43,89
Contact Length (cm)	109	111,6	113,4
Effective Edge Length (cm)	116,0	118,6	120,4
Tip Length (cm)	27,0	27,2	27,3
Tail Length (cm)	20,0	20,2	20,3
Waist Width (cm)	25,40	25,60	26,40
Underfoot Width - Front Foot (cm)	26,75	26,99	27,76
Underfoot Width - Rear Foot (cm)	26,62	26,85	27,62
Tip Width (cm)	30,3	30,5	31,3
Tail Width (cm)	29,3	29,5	30,3
Sidecut (m)	7,2	7,5	7,7
Taper (cm)	1,00	1,00	1,00
Reference Stance (cm/in)	-	-	-
Centered Stance (cm/in)	56 / 22	58 / 22,8	58 / 22,8
Insert Pack	Splitboard Pack	Splitboard Pack	Splitboard Pack
Stance Setback (cm)	2,0	2,0	2,0
