THE BC LINK 2.0

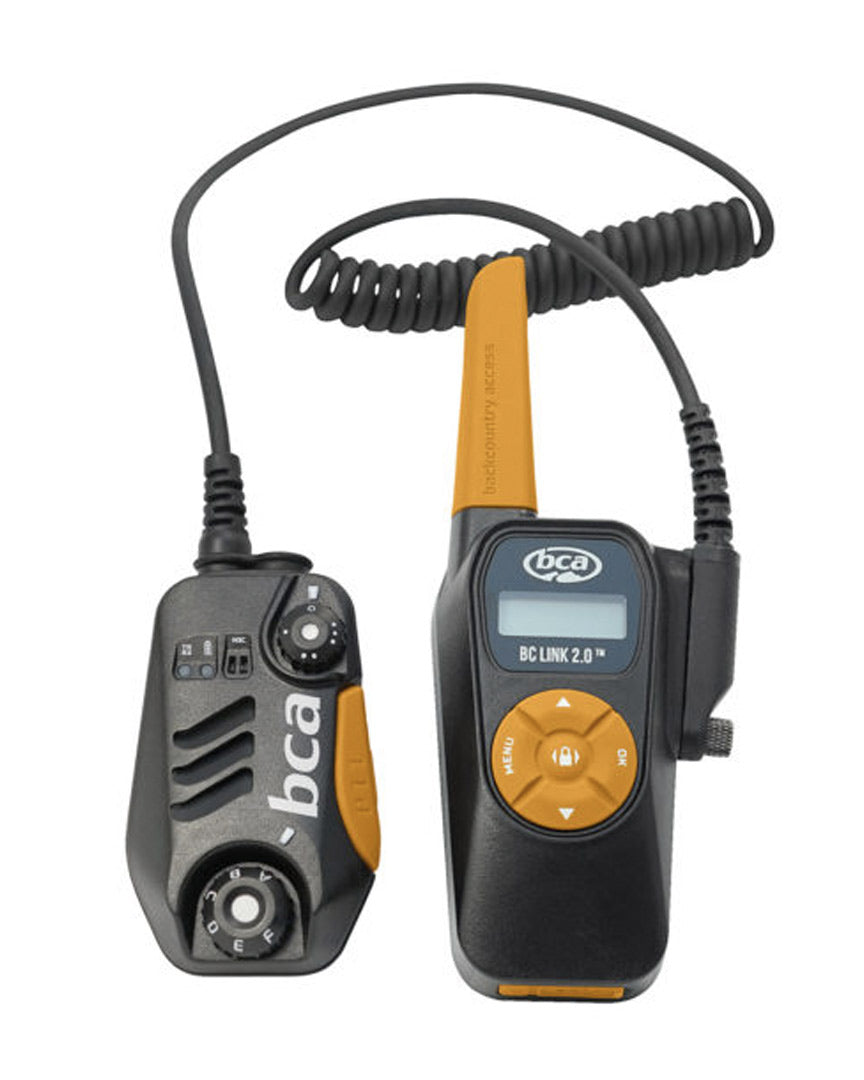

This is the Bc Link 2.0 Transceiver by Bca.

The BC Link™ Two-Way Radio 2.0 will maximize your line—and maximize your safety–now with twice the power. NOTE: Only approved for use in North America.

The BC Link™ Two-Way Radio 2.0 is our next generation radio with 2 Watts of power for increased usable range. Smart Mic grill is impervious to packing with snow. On/off/channel selection dial switch is protected from inadvertent channel changing.  Comes with long-lasting built-in rechargeable lithium-ion battery, durable cord/base unit, and new battery percentage power display. Integrates into all Float avalanche airbag and Stash backpacks.

Find separated friends, communicate plans, stick your line and share observations in real-time with the BC Link group communication system. The Smart Mic user interface is located at your fingertips: to change settings, no need to dig the radio from your pack. Battery lasts for several days without recharging, even in cold temps. The Link 2.0 improves on our current system, with more power, more durability, and more weather resistance.

Charging the BC Link Radio 2.0 battery

For operating information, please download and read the BC Link Radio 2.0 Manual.  To charge the integrated battery on the BC Link 2.0 , attach the micro-USB cable to the micro-USB port in the battery. (You can use any powered USB port to recharge but use of the recharger provided with the package is recommended.) TO VIEW THE BATTERY PERCENTAGE LEVEL, press the up and down arrowson your radio simultaneously. The battery charge level will be shown in percentage in the lower right corner or the radio display window. You may also view the battery power icon in the upper left on your radio.

HIGHLIGHTS	Includes option for pre-set channel selections. Glove-friendly controls, optimized for easy handling. Smart Mic Unit provides push-to-talk button, on/off switch, volume control, battery indicator, loudspeaker, channel selection, and an earphone jack.
WEIGHT	12 oz. / 340 g
SMART MIC DIMENSIONS	3.5 x 2.1 x 1.5 (in) / 9.0 x 5.4 x 4.0 cm
BASE UNIT DIMENSIONS	2.1 x 1.0 x 1.9 (in) / 5.5 x 2.7 x 5.0 cm
BASE UNIT	Rechargeable lithium ion battery Optional channel preset selections Compatible with all standard FRS/GMRS radios Waterproof to IP56 standards 110-Volt charger adapter connects to mini USB port on base unit
FREQUENCY	22 FRS GMRS channels + 121 sub-channels ensures minimal interference
POWER	2 Watt (FRS) conforming to new FCC rules 0.5 Watt (FRS)
USEABLE RANGE	Approx 6 mi / 9.5 km line of sight
MAXIMUM RANGE	Approx 40 mi / 64 km line of sight
BATTERY	Integrated 2300mAh lithium ion battery (Built-in – Non removeable)
BATTERY LIFE	Battery life: up to 40 hours in standby mode
WARRANTY	3 year
COLOR	Black
