THE
ESCALATOR SPLIT PLUS

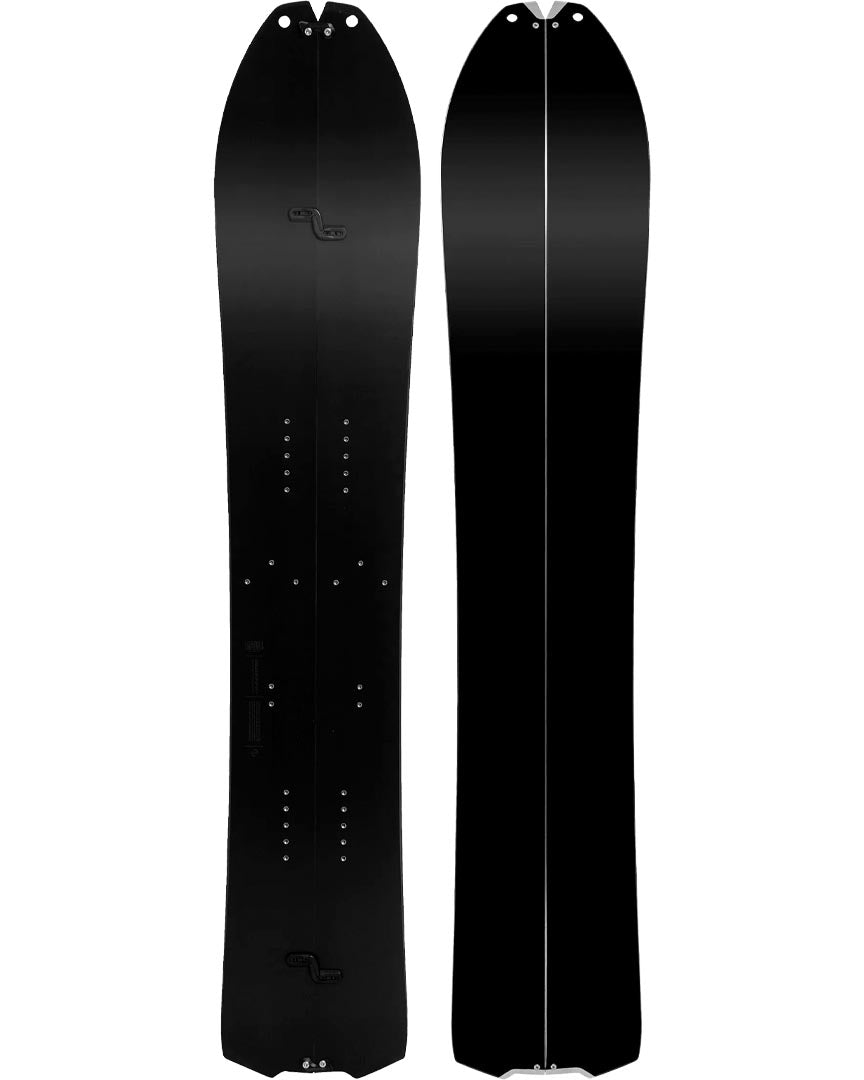

This is the Escalator Split Plus Splitboard by Korua.
Is this board sold out? Don't worry.
As one of the few stores in North America, we are proud to offer you Korua snowboards and splitboards.
We often have a restock of Korua boards during the season and if the model and size are sold out we will restock them soon or we can order them specially for you.
Just let us know by emailing: shop@boutiqueadrenaline.com
FOR THE BIG ADVENTURES
Whether it’s fresh powder or old pressed snow, the Escalator Split Plus is designed for a power-saving ascent in alpine terrain, without compromising downhill performance. This ultra-light splitboard is your best companion on long and demanding adventures deep into the backcountry. Not only designed for the climb, it also offers an incredible riding experience on the way down, be that through steep and technical terrain or wide-open big mountain lines.
PERSONALITY
The slightly narrower frame makes this shape agile from edge to edge on the way down, and provides excellent grip in the skin track when in climb-mode. The split-specific flex pattern and directional setback offer a smooth riding sensation. We recommend to pair this board with a light binding and boot setup to maximize your vertical meters and quality of turns.
THE DETAILS
The Escalator Split features our FLOAT CAMBER, which curves into a rocker shape in the nose, giving you the lift you need in deep powder and stability under-foot on the uphill. To further enhance the performance and durability of this ultralight shape we upgraded the Escalator with the snow-repellent and repairable Perlatech topsheet. The nose holes secure our U-Hook skin mounting system and the nose notch prevents hang ups in the skin track. For an easy and quick setup we suggest using our pre-cut custom skins on this shape.
SPECS
Length (cm)
152
157
162
Effective Edge (mm) *A*
1150
1200
1250
Running Length (mm)
1000
1050
1100
Nose Width (mm) *B*
299
310
304
Waist Width (mm) *C*
253
259
259
Tail Width (mm) *D*
285
286
287
Avg. Sidecut Radius (m)
8
8,2
9,6
Setback (mm)
20
20
20
Taper (mm)
14
24
17
Recommended Stance (cm)
55
55
55
Adjust. Stance Range (cm)
50 - 64
50 - 64
50 - 64
Board Weight (kg)
2,5
2,65
2,8
Switch Riding
Doable
Doable
Doable
CONSTRUCTION
The Escalator Split Plus features a dynamic multiaxial full carbon construction, super-light bionic core design, stringer reinforced paulownia wood, and the highest grade nano high-speed sintered base material for a lighter, faster, and more responsive ride.
SIZING
This chart shows the range in what each size can handle. It is never our intention to categorize riders and their preferences. Our philosophy of snowboarding is to try new shapes, lengths, widths, and to keep an open mind for alternative riding experiences; however, we do have some limits to consider so that your board will work as it was designed to.
Your weight plays a major role in how the board will flex, and your shoe size will affect toe and heel drag when turning. The below size chart is for reference only, as our recommendations may vary depending on your stance and riding ability.
ESCALATOR SPLIT PLUS
Size (cm)
Max Boot Size (EU)
Max Boot Sole Length (cm)
Rider Weight Range (kg)
Max Rider Height (cm)
152
42
30.1 cm
45 - 75 kg
178 cm
157
44
30.7 cm
55 - 90 kg
188 cm
162
44
30.7 cm
65 - 95 kg
195 cm
As one of the few stores in North America, we are proud to offer you Korua snowboards and splitboards.
We often have a restock of Korua boards during the season and if the model and size are sold out we will restock them soon or we can order them specially for you.
Just let us know by emailing: shop@boutiqueadrenaline.com
Whether it’s fresh powder or old pressed snow, the Escalator Split Plus is designed for a power-saving ascent in alpine terrain, without compromising downhill performance. This ultra-light splitboard is your best companion on long and demanding adventures deep into the backcountry. Not only designed for the climb, it also offers an incredible riding experience on the way down, be that through steep and technical terrain or wide-open big mountain lines.
PERSONALITY
THE DETAILS
The Escalator Split features our FLOAT CAMBER, which curves into a rocker shape in the nose, giving you the lift you need in deep powder and stability under-foot on the uphill. To further enhance the performance and durability of this ultralight shape we upgraded the Escalator with the snow-repellent and repairable Perlatech topsheet. The nose holes secure our U-Hook skin mounting system and the nose notch prevents hang ups in the skin track. For an easy and quick setup we suggest using our pre-cut custom skins on this shape.
| Length (cm) | 152 | 157 | 162 |
| Effective Edge (mm) *A* | 1150 | 1200 | 1250 |
| Running Length (mm) | 1000 | 1050 | 1100 |
| Nose Width (mm) *B* | 299 | 310 | 304 |
| Waist Width (mm) *C* | 253 | 259 | 259 |
| Tail Width (mm) *D* | 285 | 286 | 287 |
| Avg. Sidecut Radius (m) | 8 | 8,2 | 9,6 |
| Setback (mm) | 20 | 20 | 20 |
| Taper (mm) | 14 | 24 | 17 |
| Recommended Stance (cm) | 55 | 55 | 55 |
| Adjust. Stance Range (cm) | 50 - 64 | 50 - 64 | 50 - 64 |
| Board Weight (kg) | 2,5 | 2,65 | 2,8 |
| Switch Riding | Doable | Doable | Doable |
The Escalator Split Plus features a dynamic multiaxial full carbon construction, super-light bionic core design, stringer reinforced paulownia wood, and the highest grade nano high-speed sintered base material for a lighter, faster, and more responsive ride.
SIZING
This chart shows the range in what each size can handle. It is never our intention to categorize riders and their preferences. Our philosophy of snowboarding is to try new shapes, lengths, widths, and to keep an open mind for alternative riding experiences; however, we do have some limits to consider so that your board will work as it was designed to.
Your weight plays a major role in how the board will flex, and your shoe size will affect toe and heel drag when turning. The below size chart is for reference only, as our recommendations may vary depending on your stance and riding ability.
ESCALATOR SPLIT PLUS
| Size (cm) | Max Boot Size (EU) | Max Boot Sole Length (cm) | Rider Weight Range (kg) | Max Rider Height (cm) |
| 152 | 42 | 30.1 cm | 45 - 75 kg | 178 cm |
| 157 | 44 | 30.7 cm | 55 - 90 kg | 188 cm |
| 162 | 44 | 30.7 cm | 65 - 95 kg | 195 cm |
