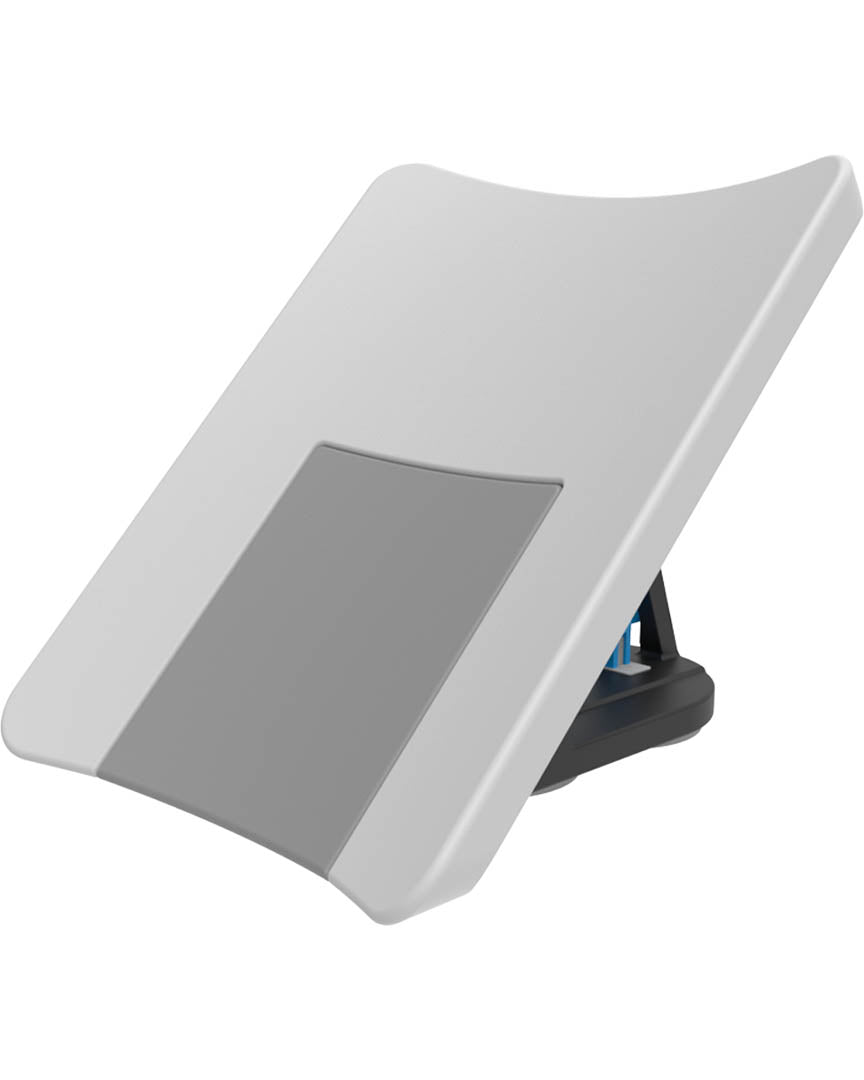

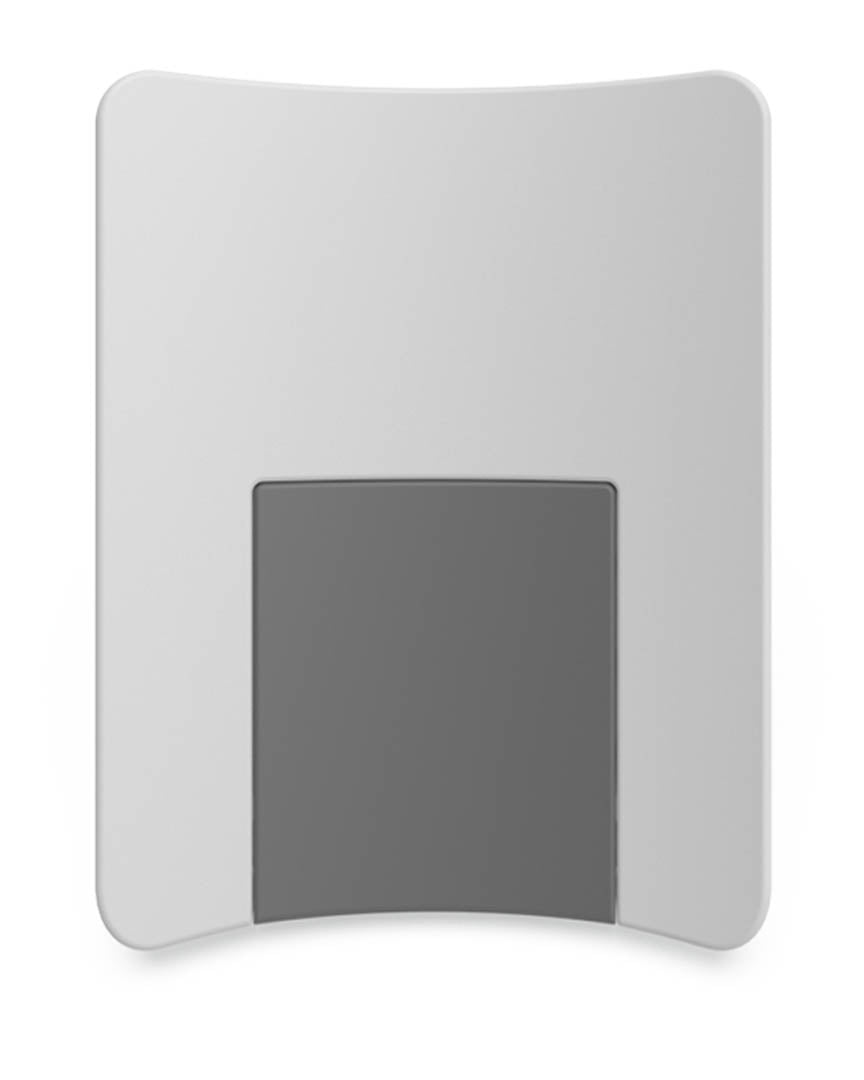

THE
MEGA WAVE FOLDING 250
BOOST YOUR BOATS SURFING WAVE
The LF Wakesurf Edge Mega Folding Wake Shaper 250 will make big wakes BIGGER! The Mega Folding 250 requires a mounting surface 5" tall by 12" long - clear of hull steps greater than 3/8".
Adjustable design lets you decide! Shift the Wakesurf Edge location on the fly to create deeper pockets or a longer wake face with more push.
- HUGE Water Displacement Wing for Maximum Wave Height! LARGEST Wakeshaper Face on the Market (Face: 14" x 18" = 252sq")

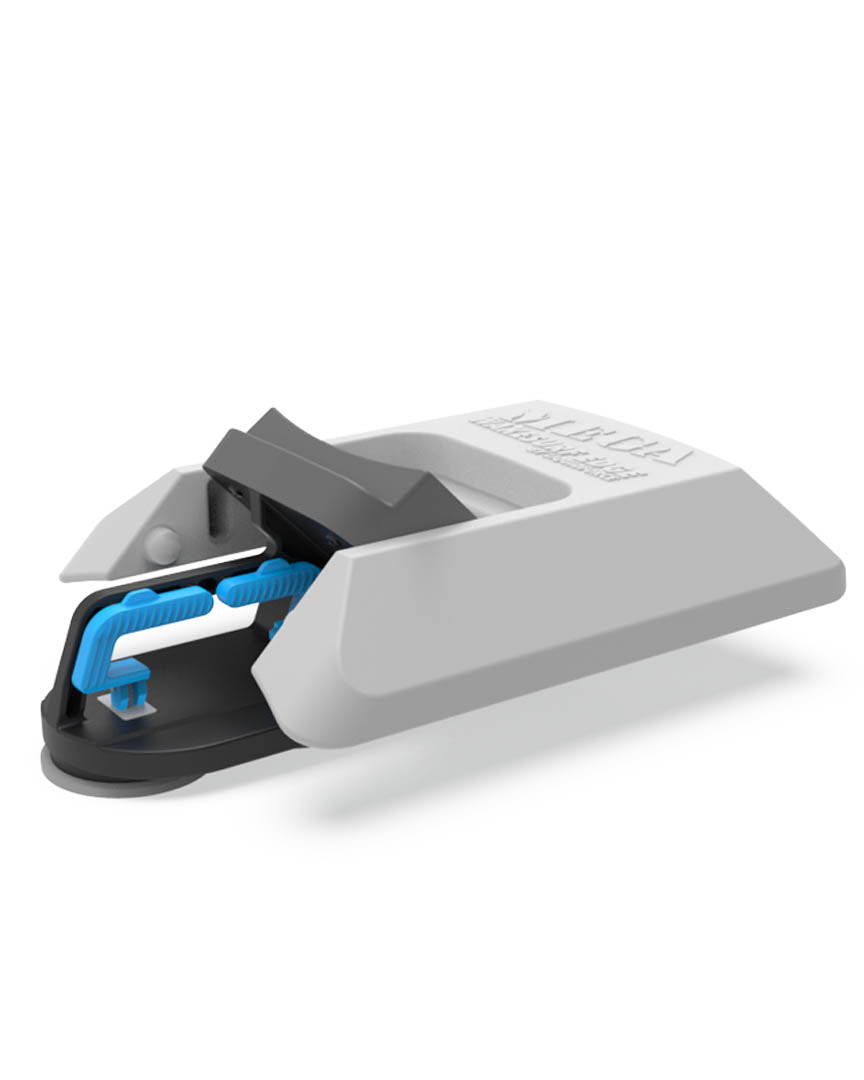

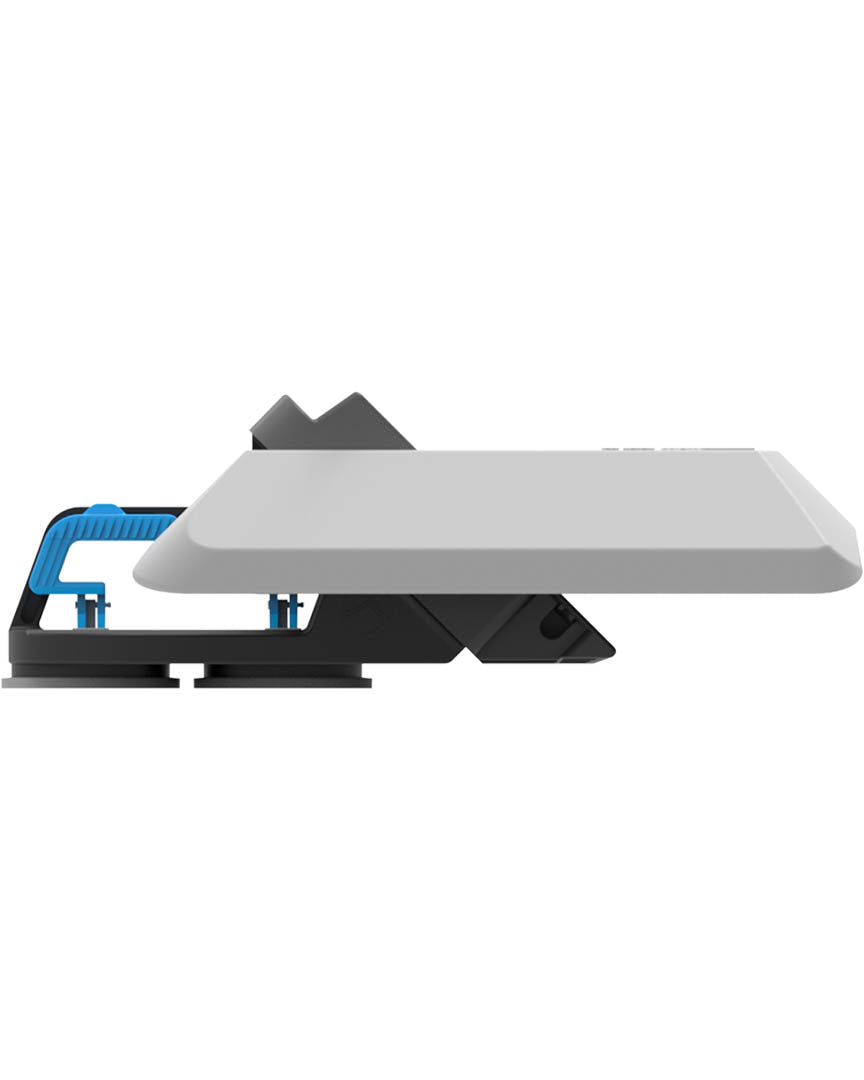

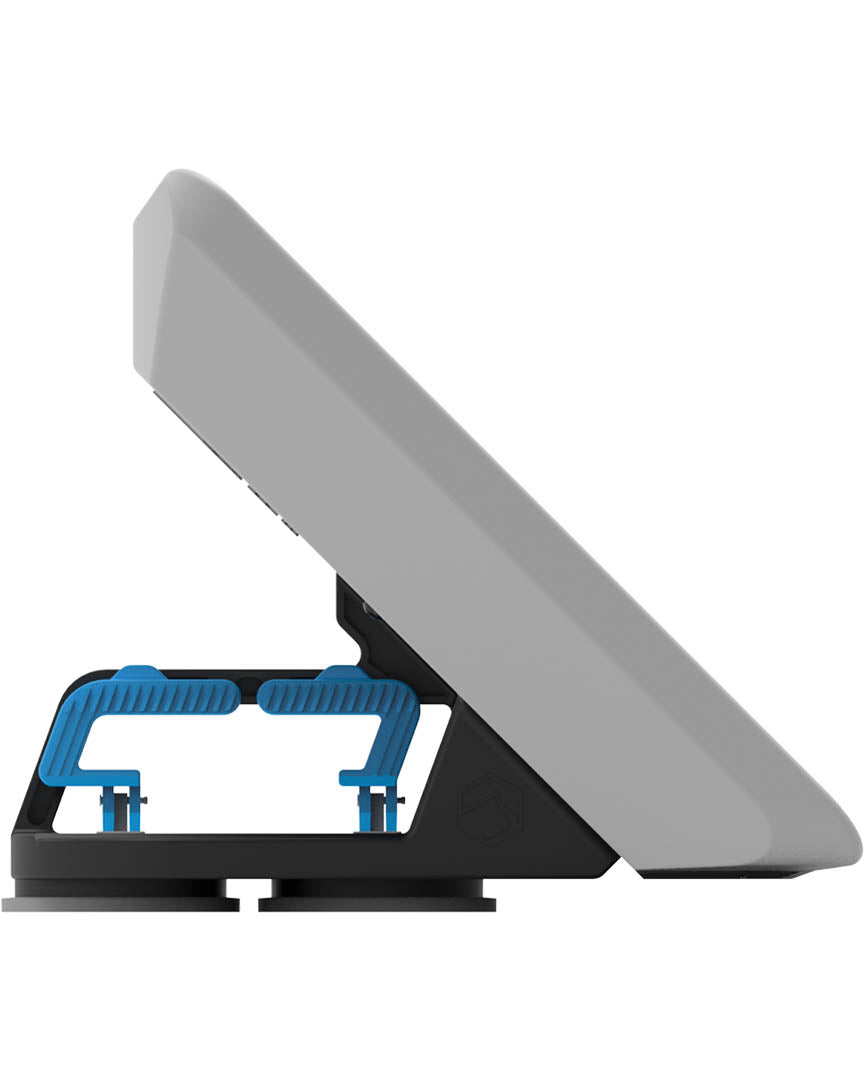

- BRAND NEW - Hinged Face Allowing for Slim Storage Profile
- Patented Concave Water Channelling Wing
- Super Strong Suction Cup Attachment!
- Made with Rust-free Materials and FLOATS!
- Do NOT tether shaper to Boat.
- Level Load Boat to Keep Nose Down for the Captain's Visibility and a Long Wake
- For Boats 21' or Longer, Have a 325hp Engine or Greater, and Sumo Water Ballast System
HOW YOUR WAKESURF EDGE WORKS
HOW A WAKE IS FORMED?
A question we overlook sometimes, but is important to understand when shaping your own custom wakesurf wave. A wake is formed when the water surrounding the mass of your boat converges as the boat moves through the water. The faster the speed, the faster the water converges to fill the void that the weight of your boat makes in the water. The heavier your boat is (ballast) the deeper the boat sinks and creates a deeper hole in the water and thus creates a larger void for the water to fill after the boat moves. Tah Dah! A better wake!
HOW TO FINE TUNE YOUR WAKE
Don’t settle for just ANY wake. You have the power to form and shape your wake for the most amount of fun possible behind your boat. You just need to know how to distribute your weight (ballast) appropriately on the boat. If you have too much weight just in the back, your wake will be tall and short. (Refer to the above information on why that is.) If you have too much weight (ballast) in the bow of your boat your wake will be longer but very small with no shape. The key is to balance the weight in the bow and in the back to make that perfect space for the water to converge and form a great wake.
HOW THE WAKESURF EDGE CREATES YOUR WAVE
As your boat sits deep in the water and moves, the water flows down the sides of your boat at an equal rate. By placing the Wakesurf Edge it channels the water flow on one side, causing the boat to yaw slightly and re-shaping that void in the water that the boat creates. Once the boat moves through the space at that angle, the water then converges at a different rate and shapes one side of the wake cleaner than the other. It’s all about how that water converges and the rate at which it colides and forms the wave.
WHERE TO ATTACH YOUR WAKESURF EDGE
PLACEMENT OF YOUR WAKESURF EDGE
Use the diagram for a good starting point to attach your Wakesurf Edge. It’s important to note that when your boat is still in the water it sits at a different angle than when your boat is pulling at wake surf speed. Attach your Wakesurf Edge at a slight upward angle to reflect the angle that your boat will travel in during the ride. That will ensure that the face of the Wakesurf Edge is causing optimal water flow obstruction and forming the best possible wave shape. A good rule of thumb on how deep to attach the Wakesurf Edge is to attach it so that 2 or 3 inches of the Wakesurf Edge is sticking out of the water. Remember that the back of the boat sinks down upon acceleratation.
FORWARD ON THE BOAT
Placing the Wakesurf Edge more forward up the boat will cause the wake to be mellower, longer, and have more push.
BACKWARD ON THE BOAT
Placing the Wakesurf Edge all the way back on the boat will cause the wake to be steeper, shorter, and have a deeper pocket.
